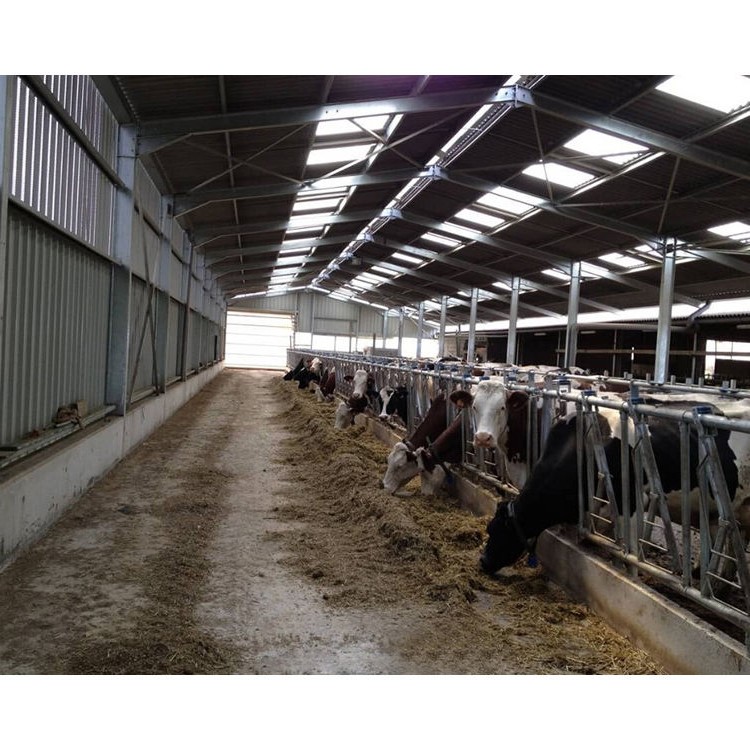

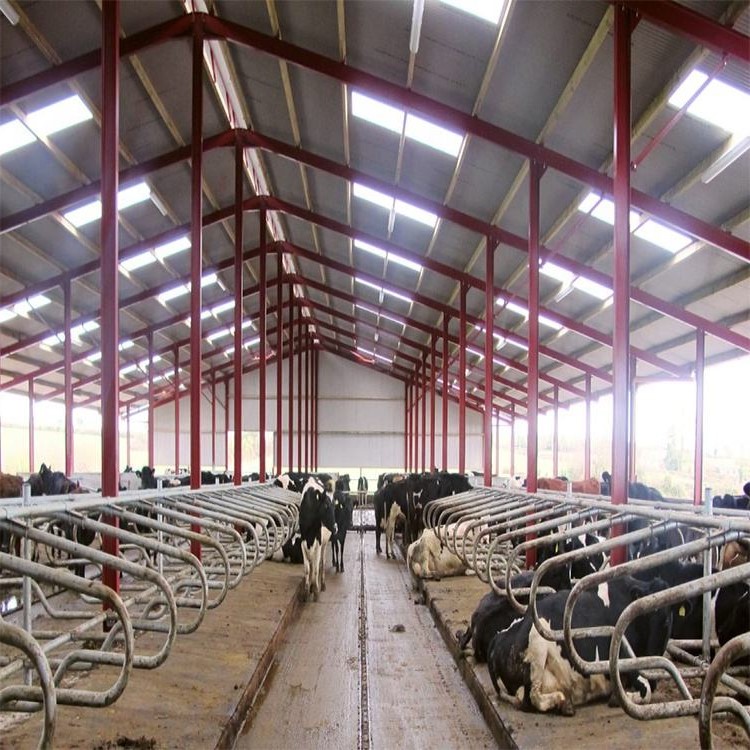

Steel Structure Cow Shed

High quality steel structure cow shed for construction projects

Product Features

High Quality Material
Fast Construction
Custom Design
Competitive Price
Professional Installation
After-sales Support

Send Inquiry

1.Cow shed design:

Cow shed buildings are mostly mixed structures, usually adopt brick wall load-bearing, steel roof truss or reinforced concrete composite roof truss. Cowshed doors are best made into push-pull type to facilitate the entry and exit of cattle. The floor inside the house should be dry and smooth, firm and wear-resistant, with good washing performance, impermeability, non-slipping and not too hard. The large-scale dairy farm also has a milking room with milking table, milk processing room, washing room, machine room, boiler room and other auxiliary rooms. The location of the milking room should take into account the route of the cow and the convenience of milking. It has higher requirements in construction and sanitary conditions.



―PRODUCT NOTES

Product performance:	The steel structure Cow Sheds have the advantages of beautiful and generous appearance, light weight, high strength, long span and long service life.
Scope of application:	Cow Shed
Product Notes (Features):	Our products are all energy-saving and environmental protection materials, all materials can be reused. Each component is prefabricated, which saves you a lot of installation time and cost.
Obtained certification:	CE certification
Solution	The design scheme and construction scheme can be determined according to the actual situation of customers.

2. Cow shed equipment:

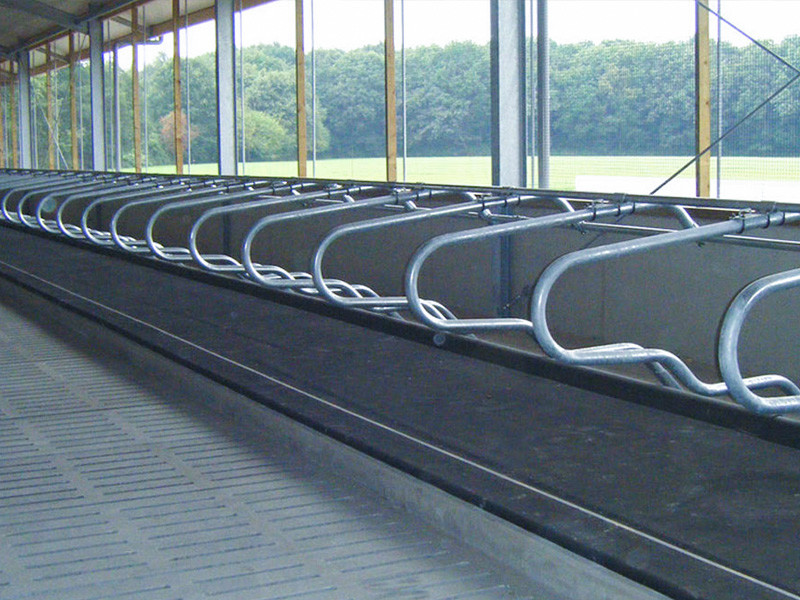

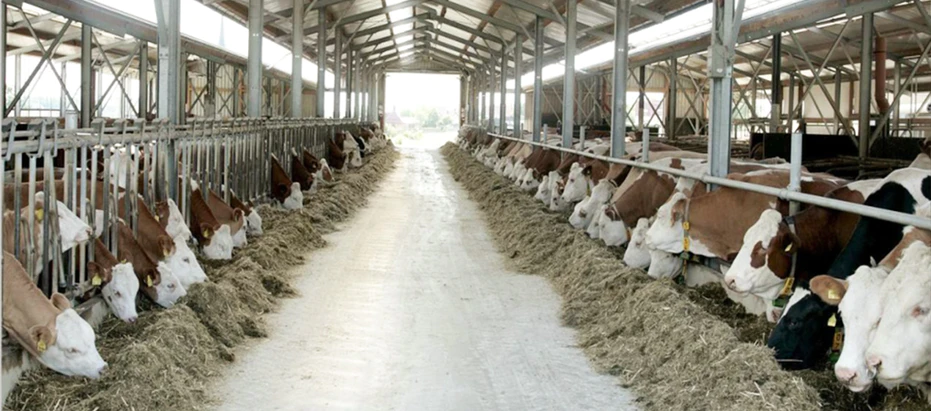

The width and length of cattle bed are determined according to the size of cattle, feeding method and number of cattle. The length of short cattle bed is generally 1.6-1.8 meters, and the length of long cattle bed is generally 2-2.4 meters, which has a large range of activities. The width of the cowbed depends not only on the size of the cow, but also on the milking operation, generally 1.1-1.3 meters.

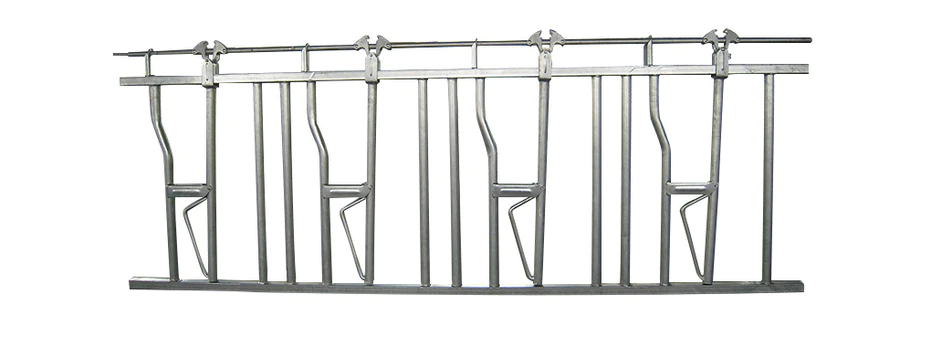

There are many ways to tie cows, such as fixed neck flail, straight chain neck flail and horizontal chain neck flail.

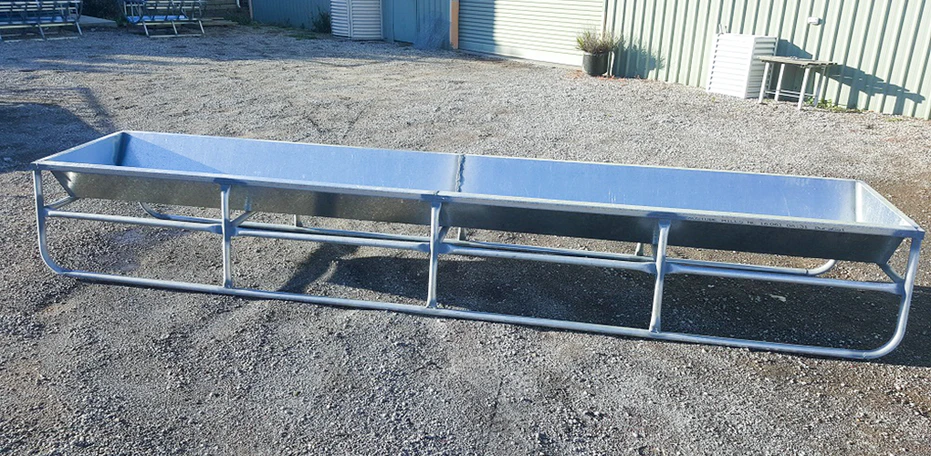

There is a feed trough in front of the cow bed, the surface should be smooth, impervious to water, and resistant to acid and wear. The bottom of the trough should be flat and rounded on both sides to accommodate the cows. The width of the top of the trough is generally 0.5 to 0.6 m, the height along the side of the cow is 0.25 to 0.3 m, and the height of the other side is 0.6 to 0.8 m.

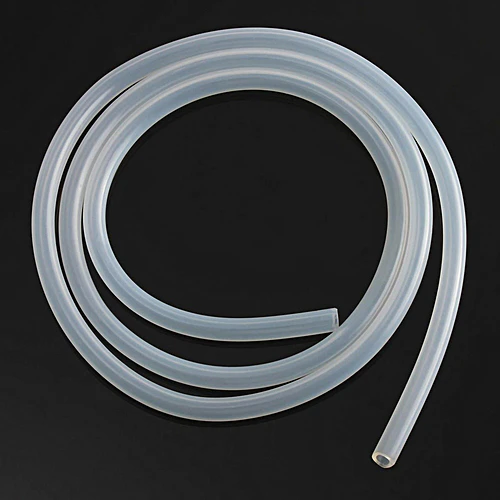

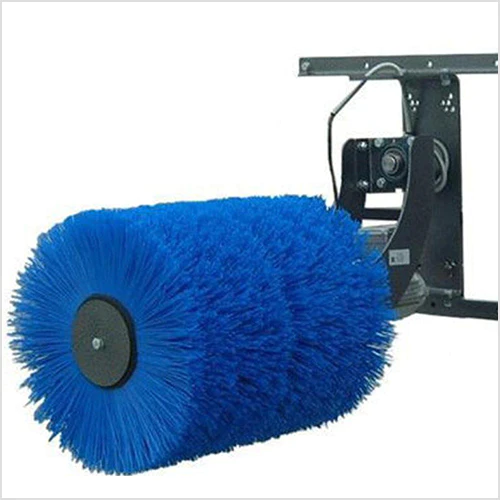

In addition, cow brushes and feeding tubes may be used in cowshed.

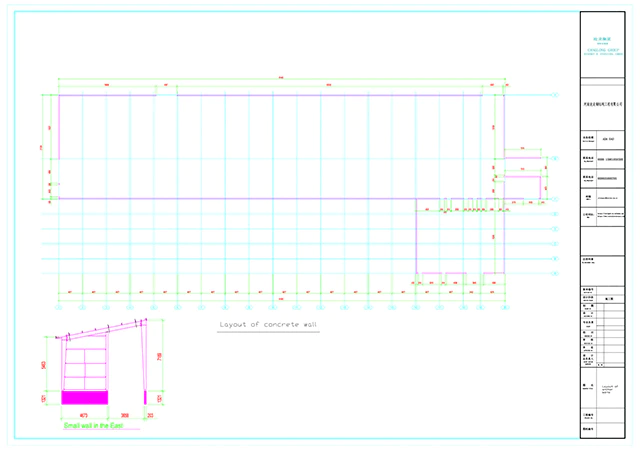

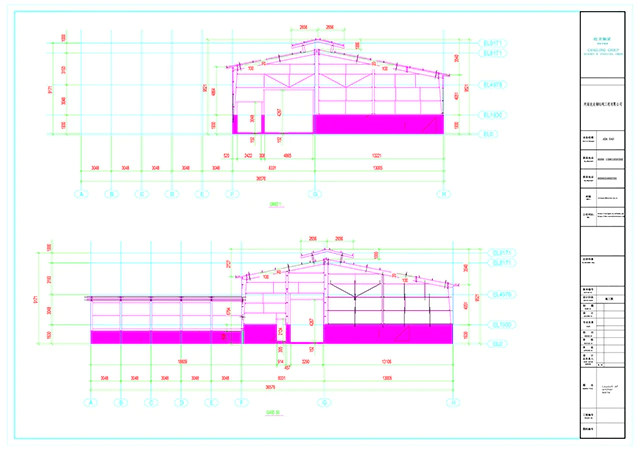

3. The basic structure of the cow shed:

Basic structure of cow shed:

Foundation and wall. Base depth is 8-100 cm, brick wall thickness is 24 cm, double slope cow shed ridge height is 4.0-5.0 meters.

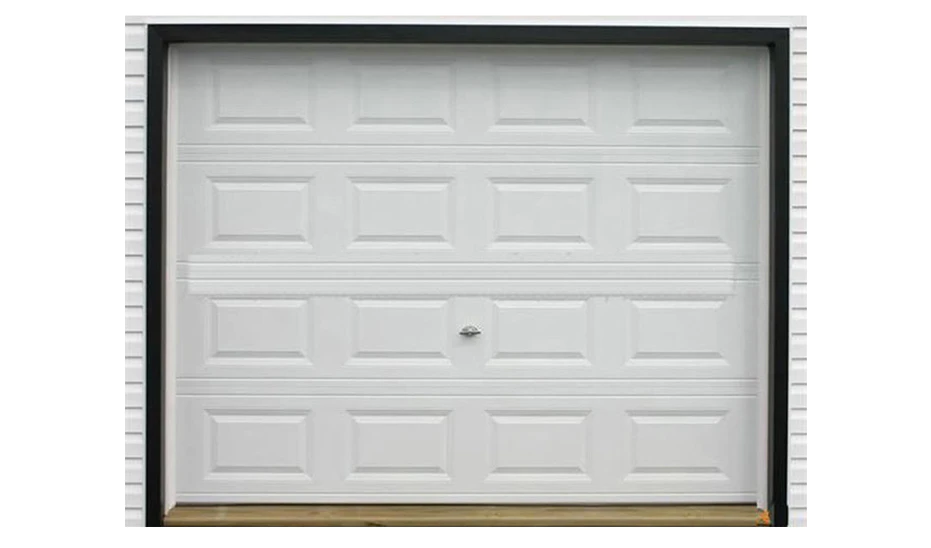

Doors and windows:

The door is 2.1-2.2 meters high and 2-2.5 meters wide. Doors are usually set as double-open doors, but can also be set up up up up and down rolling doors. Closed windows should be larger, 1.5 meters high, 1.5 meters wide, and 1.2 meters high from the ground.


Site areas:

The size of cattle farm can be calculated according to the area required for each cattle and combined with long-term planning. The area of cowshed and other houses is 15% to 20% of the total area of the site.

Roof:

The most common type is the sloping roof. This type of roof can be applied to large-span cow shed, and can be used for all kinds of cattle of various sizes. This kind of roof is economical, heat preservation and easy to construct.

Related Products

Steel Structure Chicken House

Place of Origin	Henan, China (Mainland)
Standard	GB Standard
Certificates	CE, ISO9001
Grade	Q235/Q355
Brand Name	Canglong Group
Type	Steel Structure
Surface Treatment	Painted & Hot dip galvanized
Columns and Beams	H-section Steel
Purlin	C.Z Shape Steel Channel
Roof and Wall Panel	Sandwich Panel, Color Steel Plate
Door	Sliding Door,Rolling Door
Window	Plastic Steel Window/Aluminum Alloy Window

Steel Structure Pig Shed

Place of Origin	Henan, China (Mainland)
Standard	GB Standard
Certificates	CE, ISO9001
Grade	Q235/Q355
Brand Name	Canglong Group
Type	Steel Structure
Surface Treatment	Painted & Hot dip galvanized
Columns and Beams	H-section Steel
Purlin	C.Z Shape Steel Channel
Roof and Wall Panel	Sandwich Panel, Color Steel Plate
Door	Sliding Door,Rolling Door
Window	Plastic Steel Window/Aluminum Alloy Window

LEAVE A MESSAGE

If you have any questions about our products or services, feel free to reach out to customer service team.

Start typing to see products you are looking for.

Technical Specifications

Parameter	Value
Material	Q235 / Q355 Steel
Span Range	6m - 36m (customizable)
Length	Customizable according to requirements
Height	3m - 15m (customizable)
Roof Slope	5% - 15%
Wind Load	0.3 - 0.6 kN/m² (adjustable)
Seismic Grade	Grade 8 - 12
Service Life	50+ Years
